LAYERED LUXURY ELECCTRIC DECK OVEN
Latest Products
LAYERED LUXURY ELECCTRIC DECK OVEN
Accurate temperature control system, independent working mode of top fire and bottom fire to meet your needs.
Safe and reliable traditional mechanical temperature controller.
Safe and reliable perspective glass withhigh temperature resistance.
High-quality electric heating tubes are evenly distributedin the oven to achieve uniform temperature distribution.
Accurate temperature control, independent top fire and bottom fire, to meet your needs!
Intelligent digital temperature control system.
Accurate temperature and convenient operatio.
Features of Layered Luxury Oven
Heating tube is a well-known domestic brand, made of 304 stainless steel
Over-temperature power-off protection, automatic constant temperature, safe, convenient and
secure timed baking from top to bottom
There are 12 heating tubes at the top and bottom, which makes the layout more dense, the heating
speed higher, and the products evenly heated without dead ends
The door is made of high-temperature sealing rubber strip with a temperature resistance of 400°
The door handle is an anti-scalding and high-temperature resistant handle

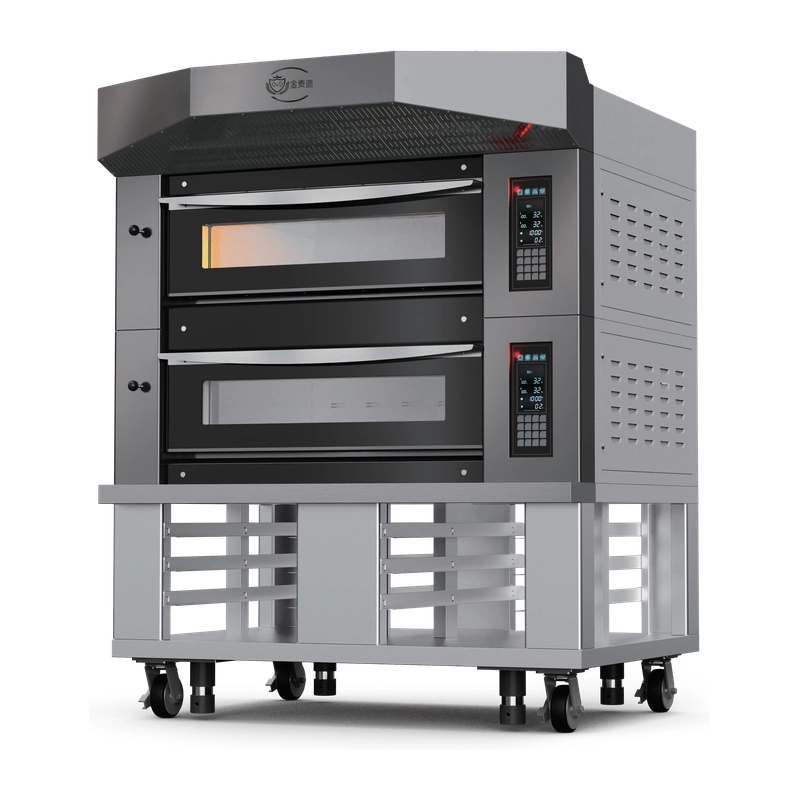

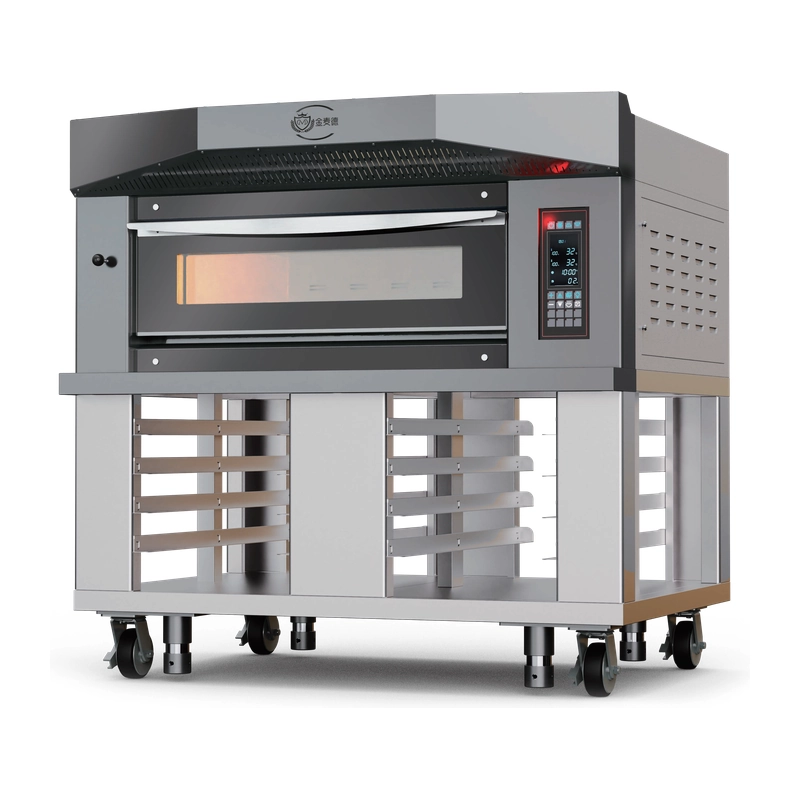

Layered Electric Deck Oven
(Excluding steam drum, the power of steam drum is 2KW per set)
| Name | Model | Size and Specification (mm) | Voltage | Power | Weight | Output | Temperature Control Range |
|---|---|---|---|---|---|---|---|
| One Layer with Two Trays (Layered) | JMD-CKD1-2A | 1400 × 1160 × 1380 | 220V/380V | 6.8KW | 280KG | 20KG/H | 0–400℃ |
| Two Layers with Four Trays (Layered) | JMD-CKD2-4A | 1400 × 1310 × 1760 | 380V 3N ~ | 13.6KW | 420KG | 40KG/H | 0–400℃ |
| Three Layers with Six Trays (Layered) | JMD-CKD3-6A | 1400 × 1310 × 1880 | 380V 3N ~ | 20.4KW | 542KG | 60KG/H | 0–400℃ |
| Three Layers with Nine Trays (Layered) | JMD-CKD3-9A | 1820 × 1105 × 1880 | 380V 3N ~ | 24.5KW | 610KG | 90KG/H | 0–400℃ |
Note: All dimensions do not include handles, chimneys, power switches and power cords (only including leather legs or wheels).
